Summarization:

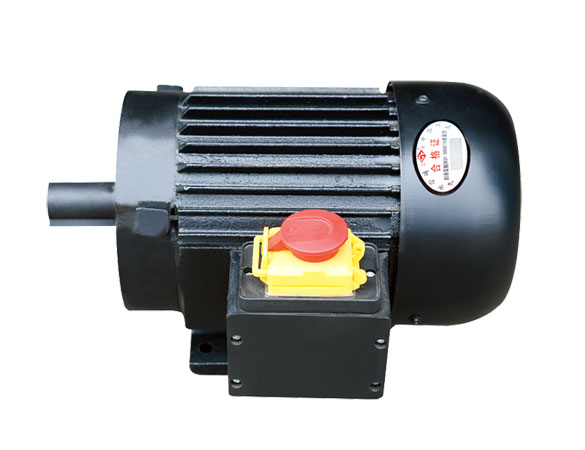

YU series motor is full-close rat-cage single-phase capacitor-start asynchronous motor self-cooled by fan,The motor is of the characteristic of simple structure,safe and reliable working,easy maintenance,excellent technique guideline and so on.
As ordinary-purpose motor, the series is used to small machine tool, iatric appliance, electronic apparatus, indoor appilance and so on.

Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt：220V
Rated Frequency：50Hz
Working System：S1
Insulation Grade：E或B（E OR B）
Protection Grade：IP44
Cooling Type：IC 411

Technical data

Type	Rated power (KW)	Rated Volt (V)	Rated current (V)	Rated speed (r/min)	Efficient (%)	Power factor (cos￠)	Locked current (A)	Locked-rotor torque/Rated torque	Maximal torque/Rated torque	Yawp dB(A)
Synchronous speed 3000r/min 2pole
YU7112	0.18	220	1.89	2800	60	0.72	17	1.3	1.8	70
YU7122	0.25		2.40	2800	64	0.74	22	1.1		70
YU8012	0.37		3.36	2800	65	0.77	30	1.1		75
YU8022	0.55		4.65	2800	68	0.79	42	1.0		75
YU90S-2	0.75		6.09	2800	70	0.80	55	0.8		75
YU90L-2	1.1		8.68	2800	72	0.80	90	0.8		78
Synchronous speed 1500r/min 4pole
YU7114	0.12	220	1.88	1400	50	0.58	14	1.5	1.8	65
YU7124	0.18		2.49	1400	53	0.62	17	1.4		65
YU8014	0.25		3.11	1400	58	0.63	22	1.2		65
YU8024	0.37		4.24	1400	62	0.64	30	1.2		70
YU90S-4	0.55		5.49	1400	66	0.69	42	1.0		70
YU90L-4	0.75		6.87	1400	68	0.73	55	1.0		70
